功能背景

  1. 在As和Ad的bot/agent创建和使用过程中,一些复杂的场景,Dolphin不支持 if else类型的agent,也不好做一些复杂的agent。 在社区的产品中,dify,coze, n8n等产品,都有利用工作流的方式,来解决复杂场景中agent的编排。故我们将利用现在的工作流来补充这一部分。我们通过现有的【工作流】+【知识助手】两个模块来实现chatflow场景

名词解释:Chatflow

对话流是一种面向对话场景的工作流编排模式,专为需要多步逻辑处理的交互式应用设计。
在知识助手中通过用户问答的方式,来调用工作中心配置的工作流,叫做Chatflow类型。

环境部署要求

需要Sailor模块和工作中心模块

如何创建chatflow对话流智能体

1. 创建chatflow对话工作流

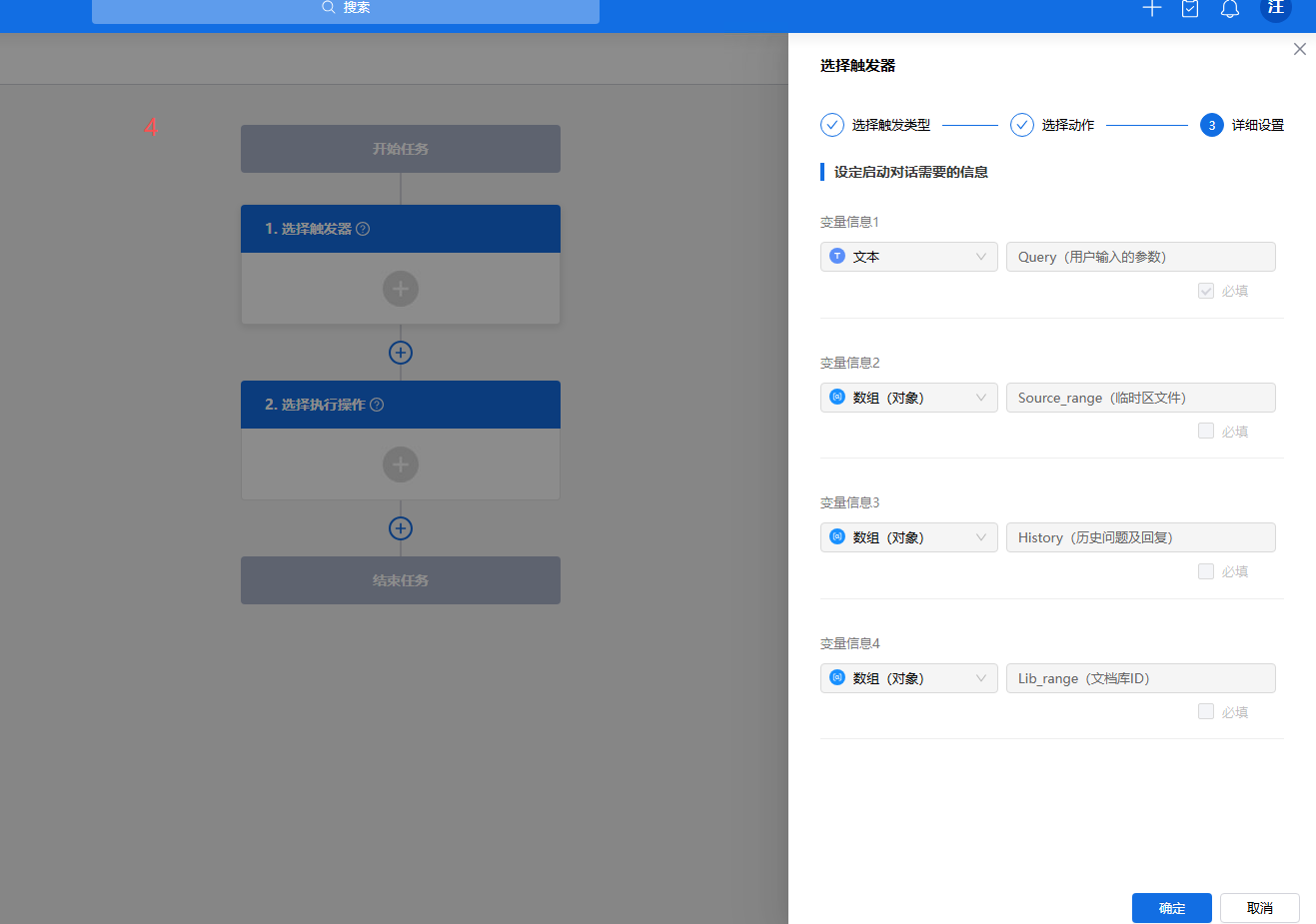

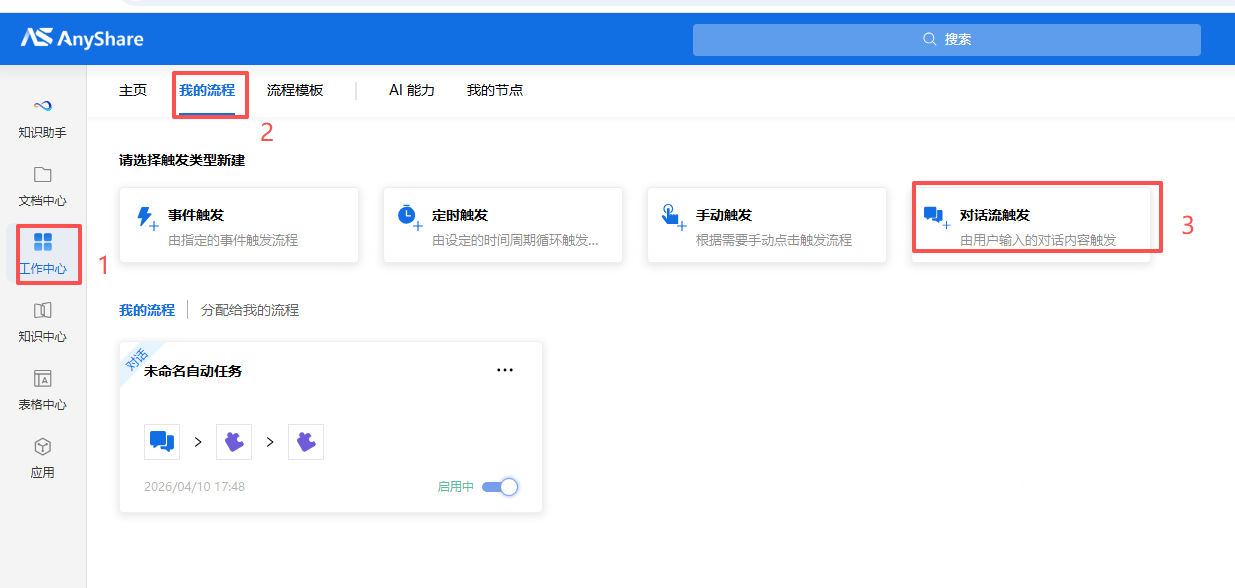

登录客户端进入工作中心——我的流程页面,选择触发类型对话流触发点击,页面如下:
alt text
alt text

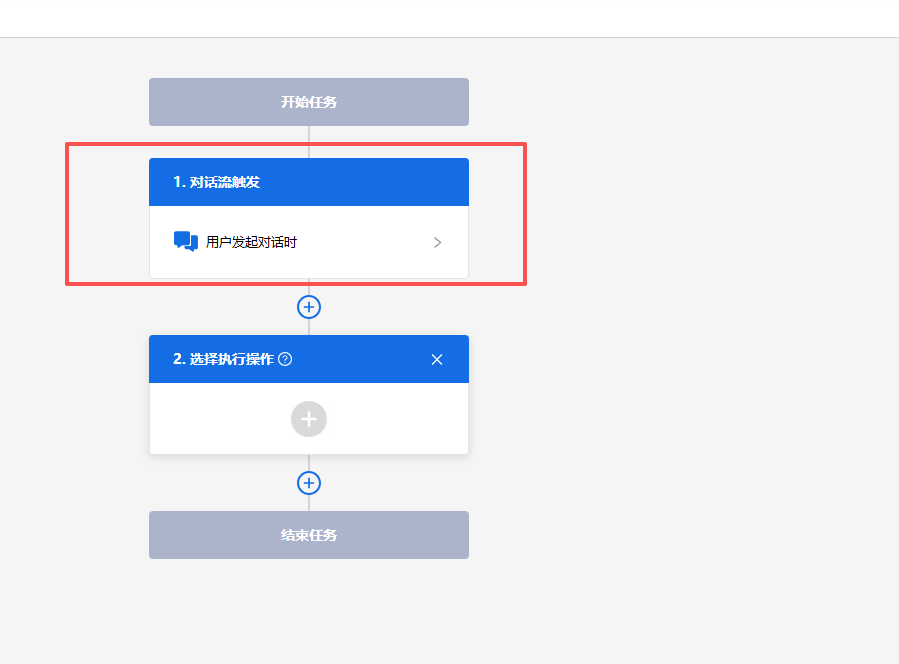

对话流创建页面点击确定添加触发器成功
alt text

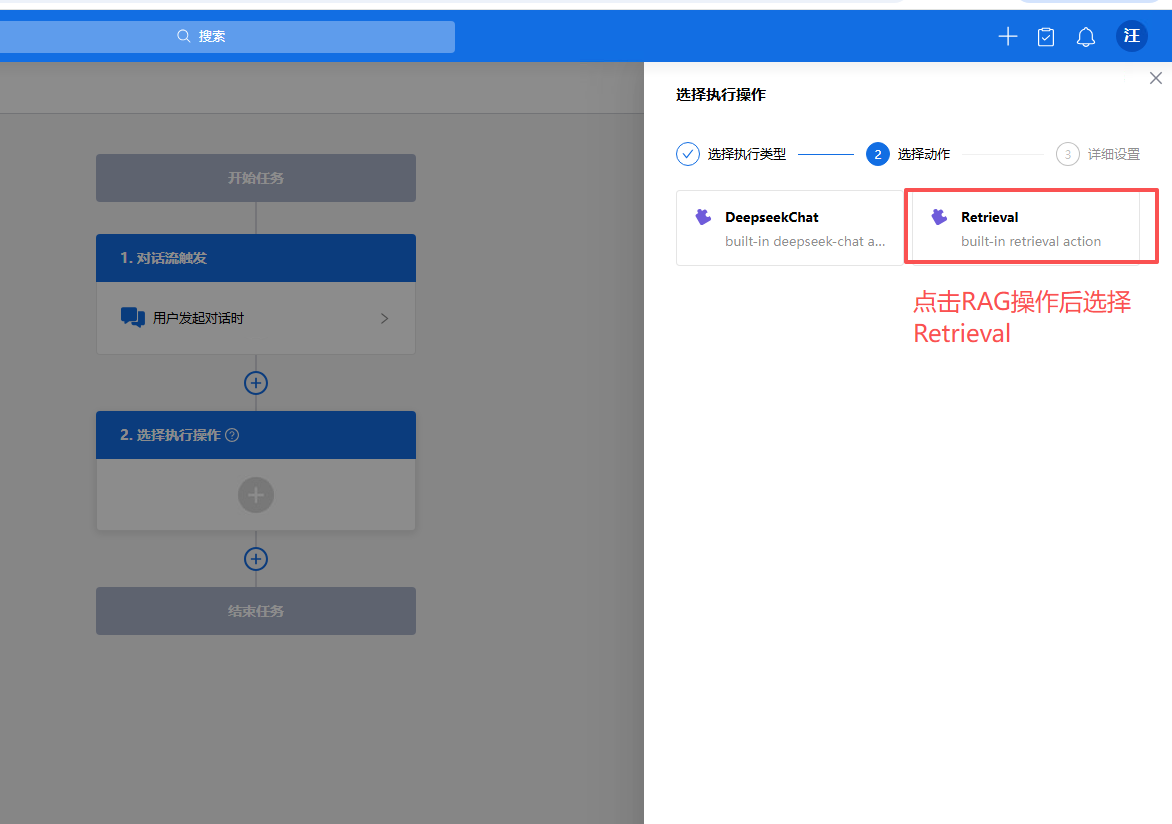

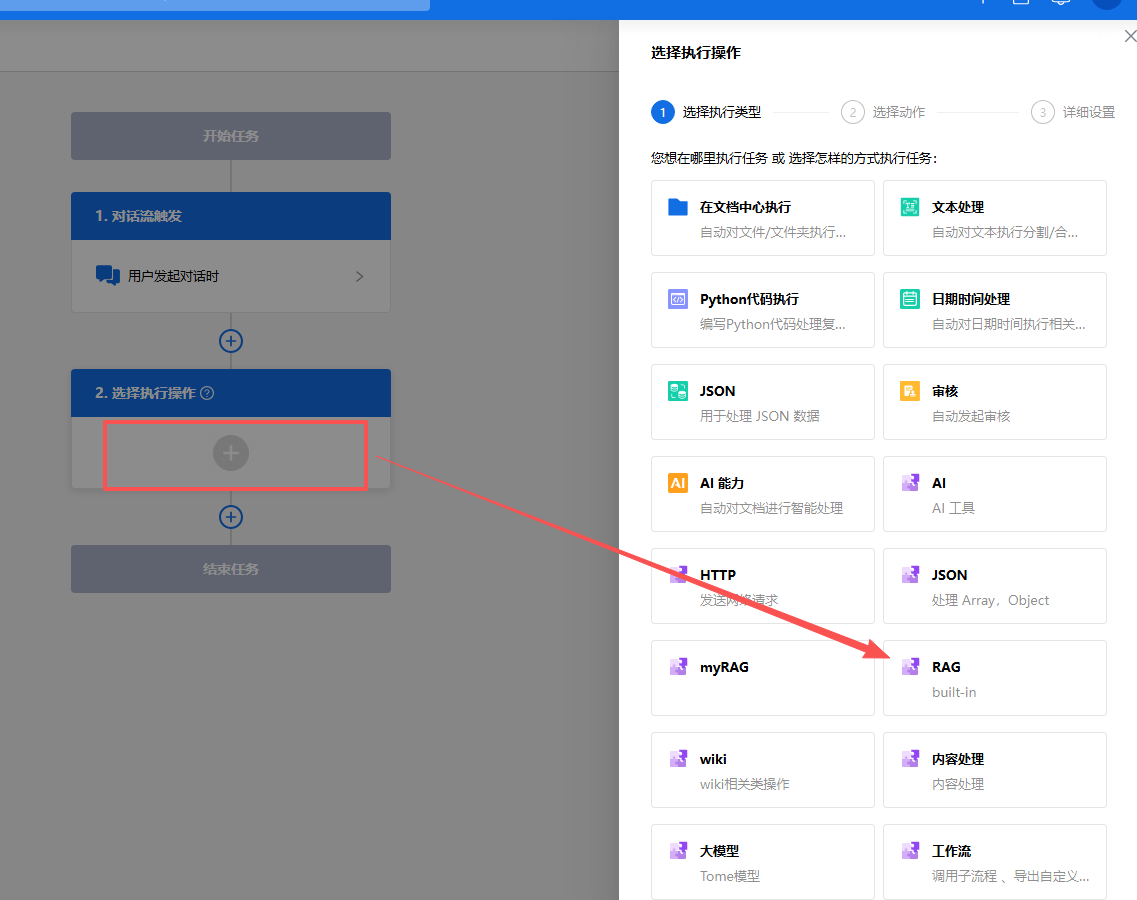

节点添加执行操作(基于工作流内置RAG节点进行操作),先添加召回节点
alt text
alt text

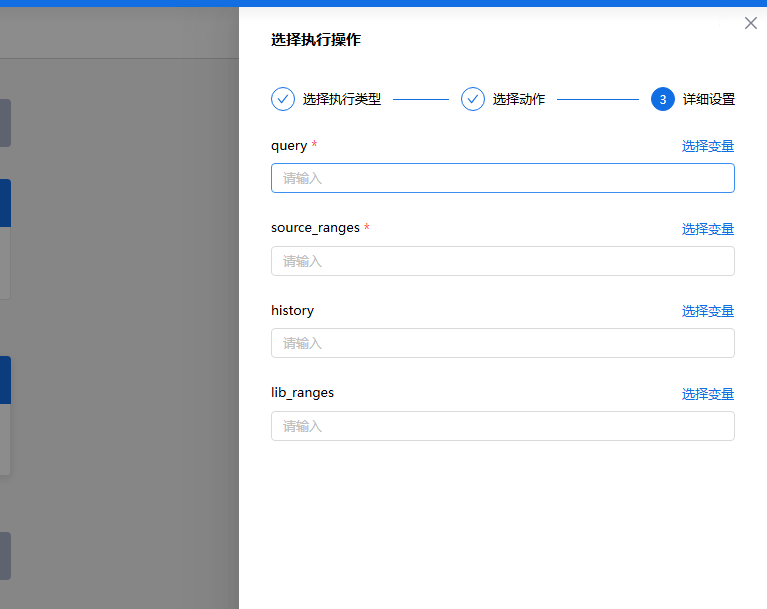

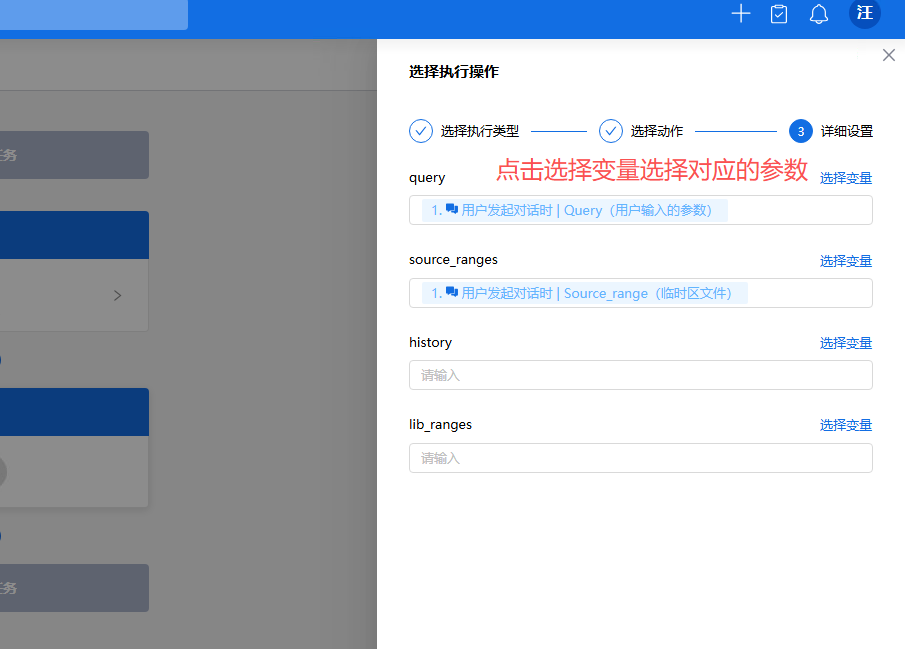

填写召回节点详细设置信息
alt text
alt text

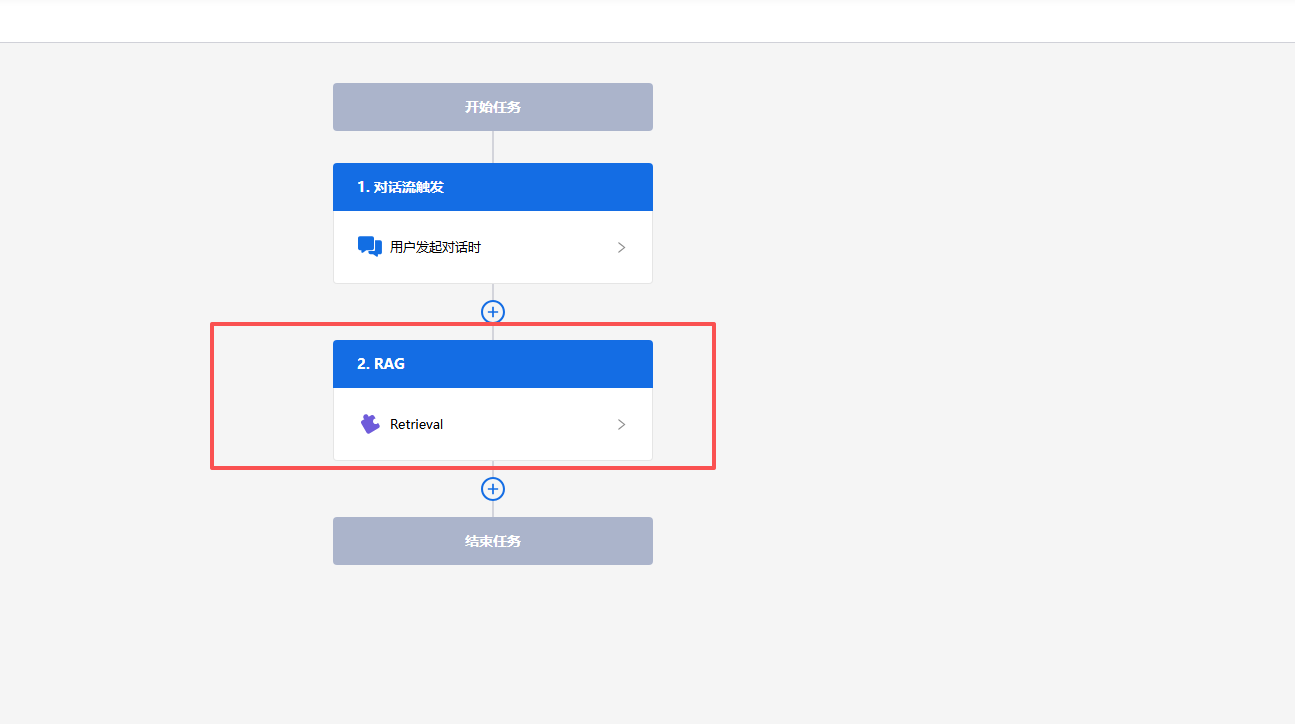

点击确定按钮添加召回节点成功
alt text

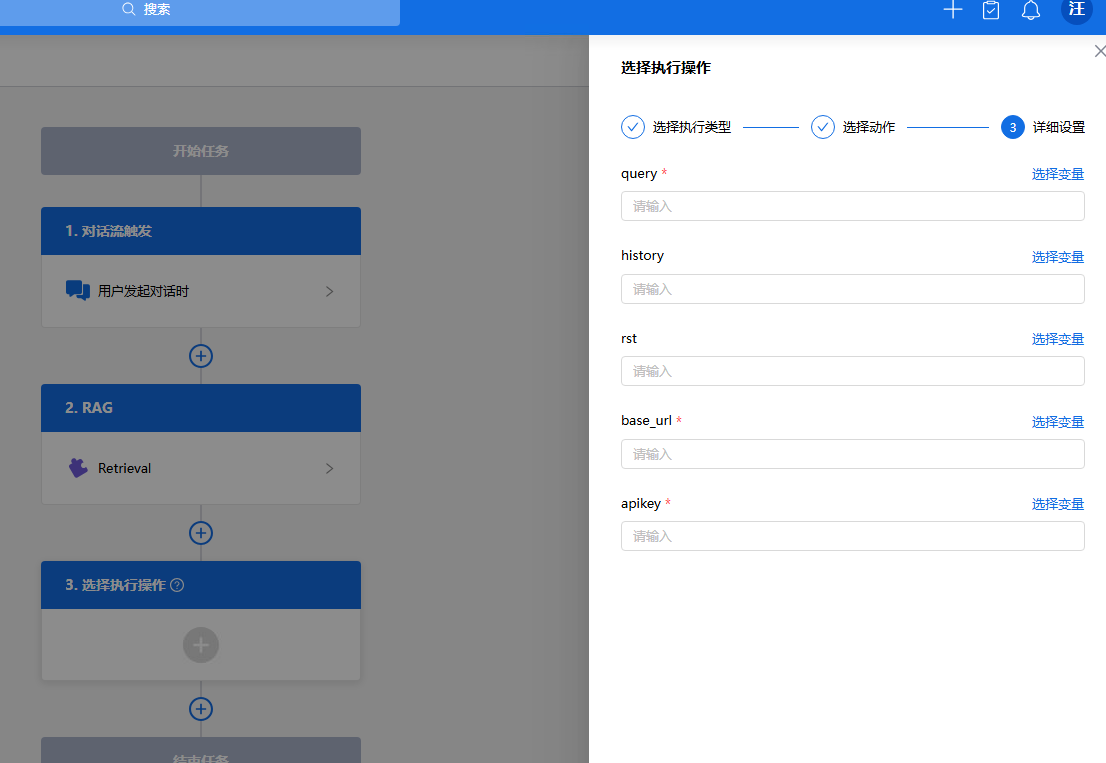

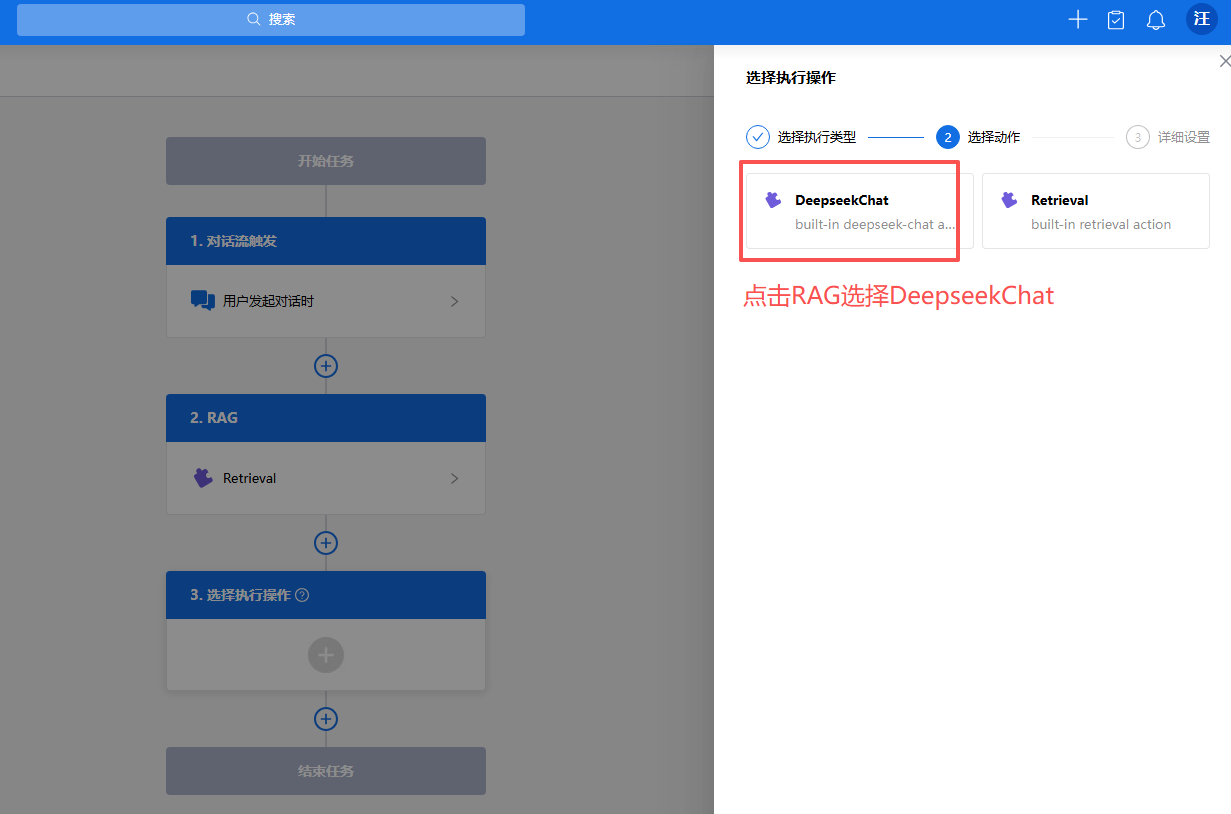

再次添加操作节点大模型节点
alt text
alt text

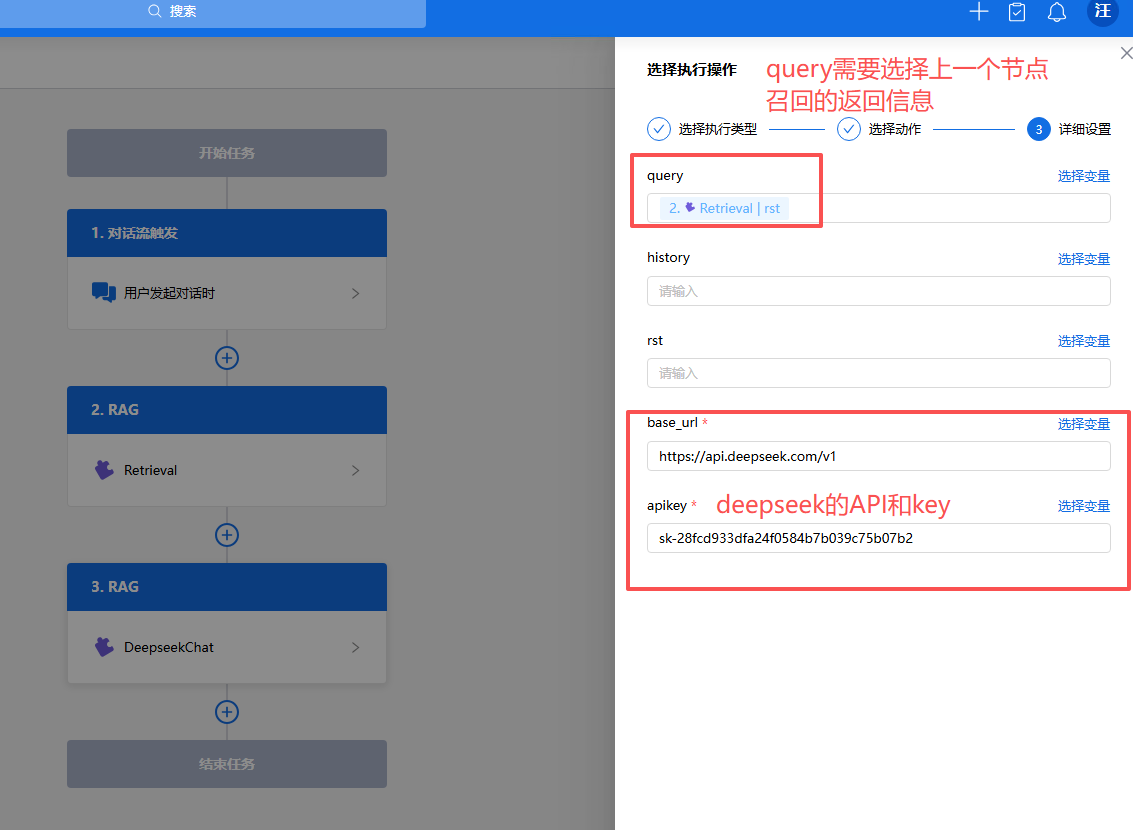

填写大模型节点详细设置,其中base_url和apikey为模型的API访问地址和密钥,此处以deepseek为示例
alt text

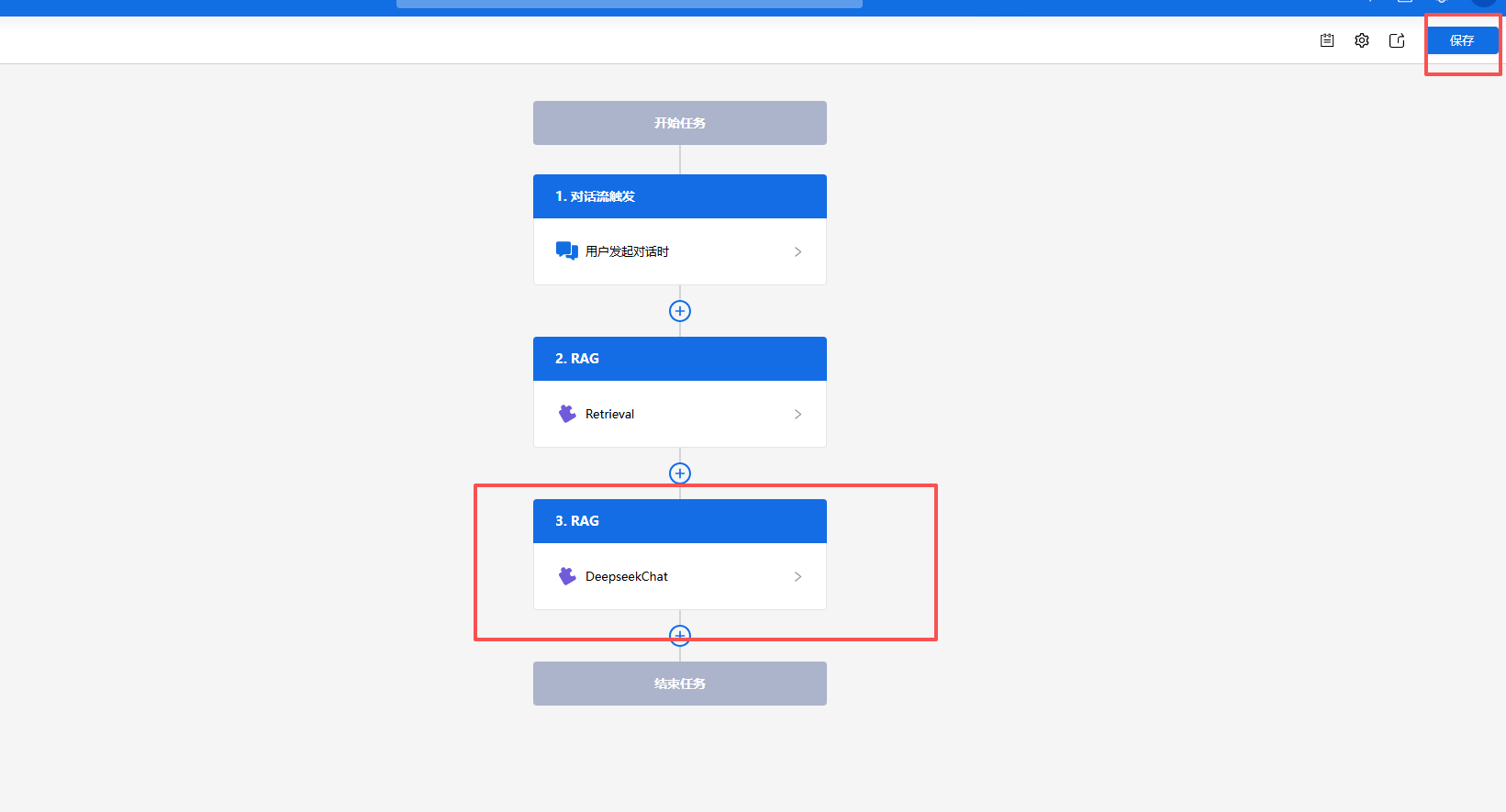

填写完成节点信息后保存工作流
alt text

至此chatflow对话工作流创建成功

2.创建chatflow对话流智能体

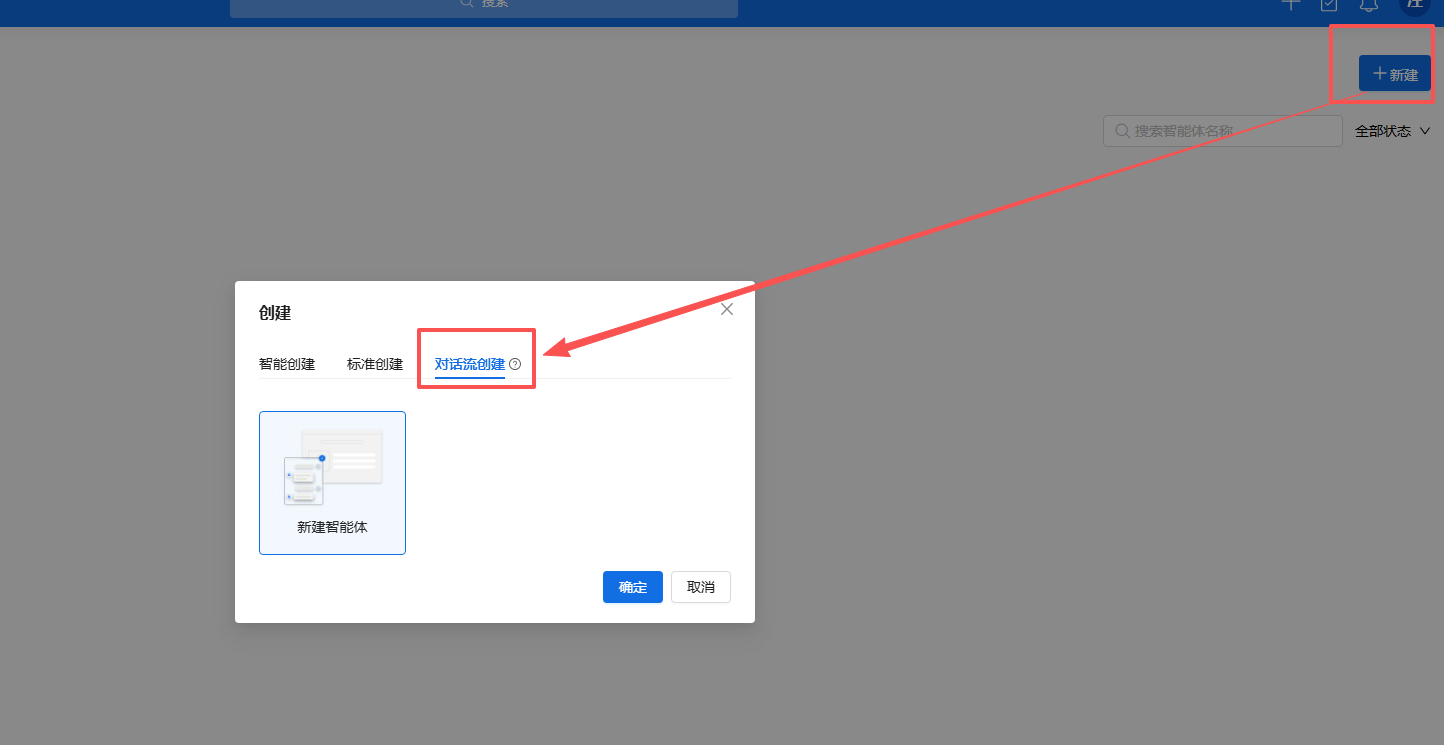

进入智能体创建页面,创建智能体,智能体模式选择对话流创建
alt text

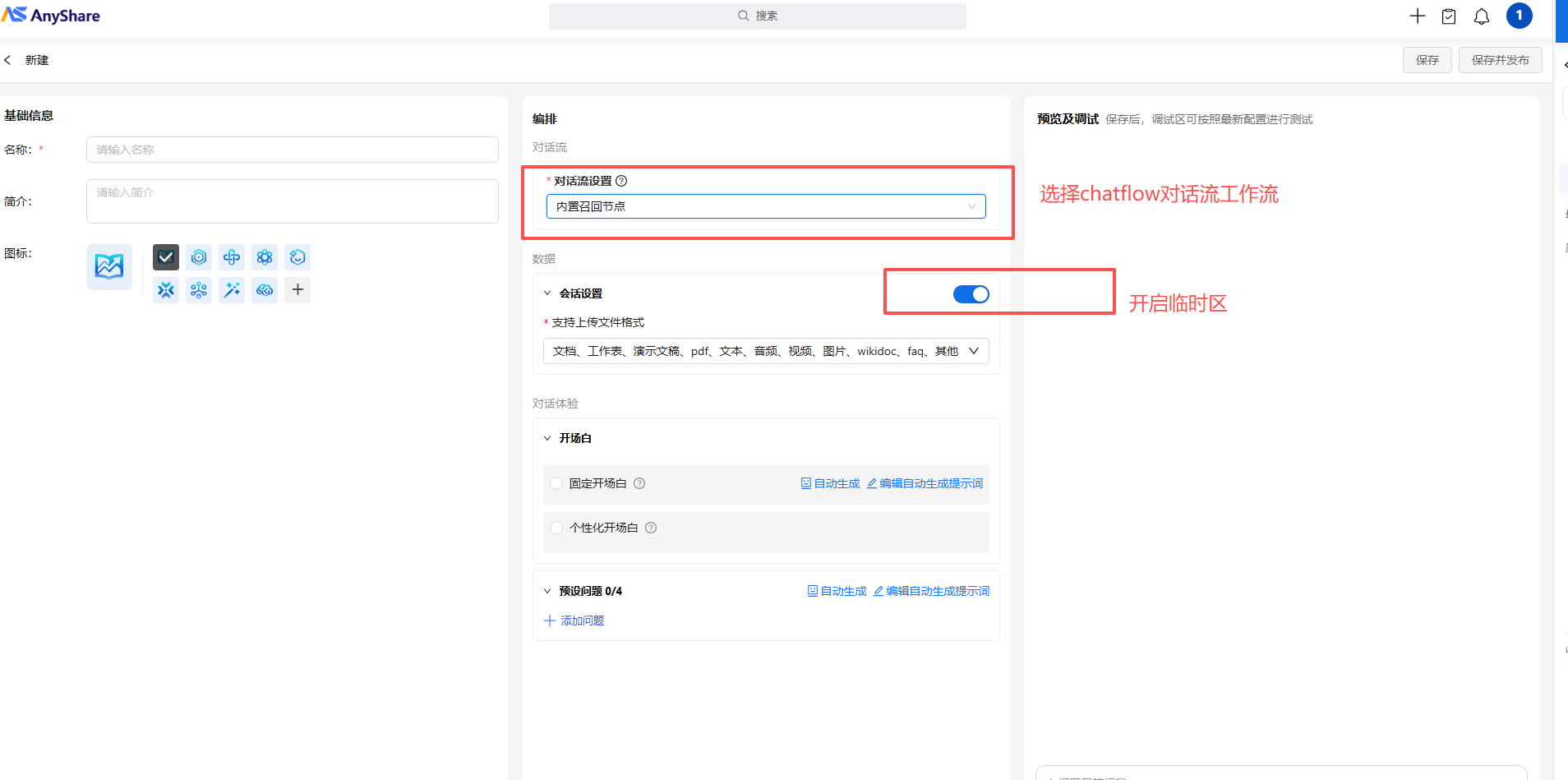

填写对话流智能体信息,保存智能体
alt text

3.使用对话流智能体进行问答

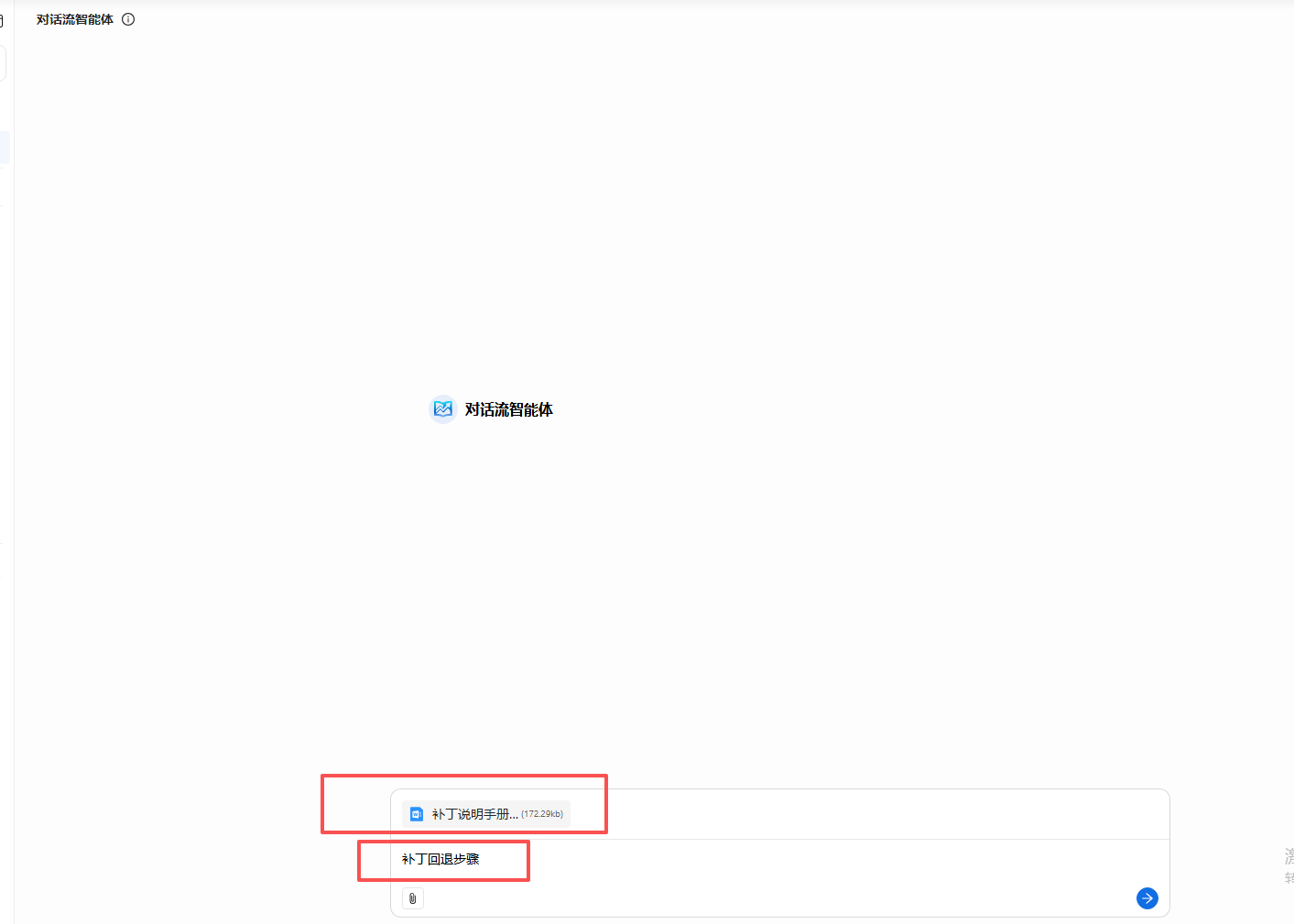

输入query和临时区文件
alt text

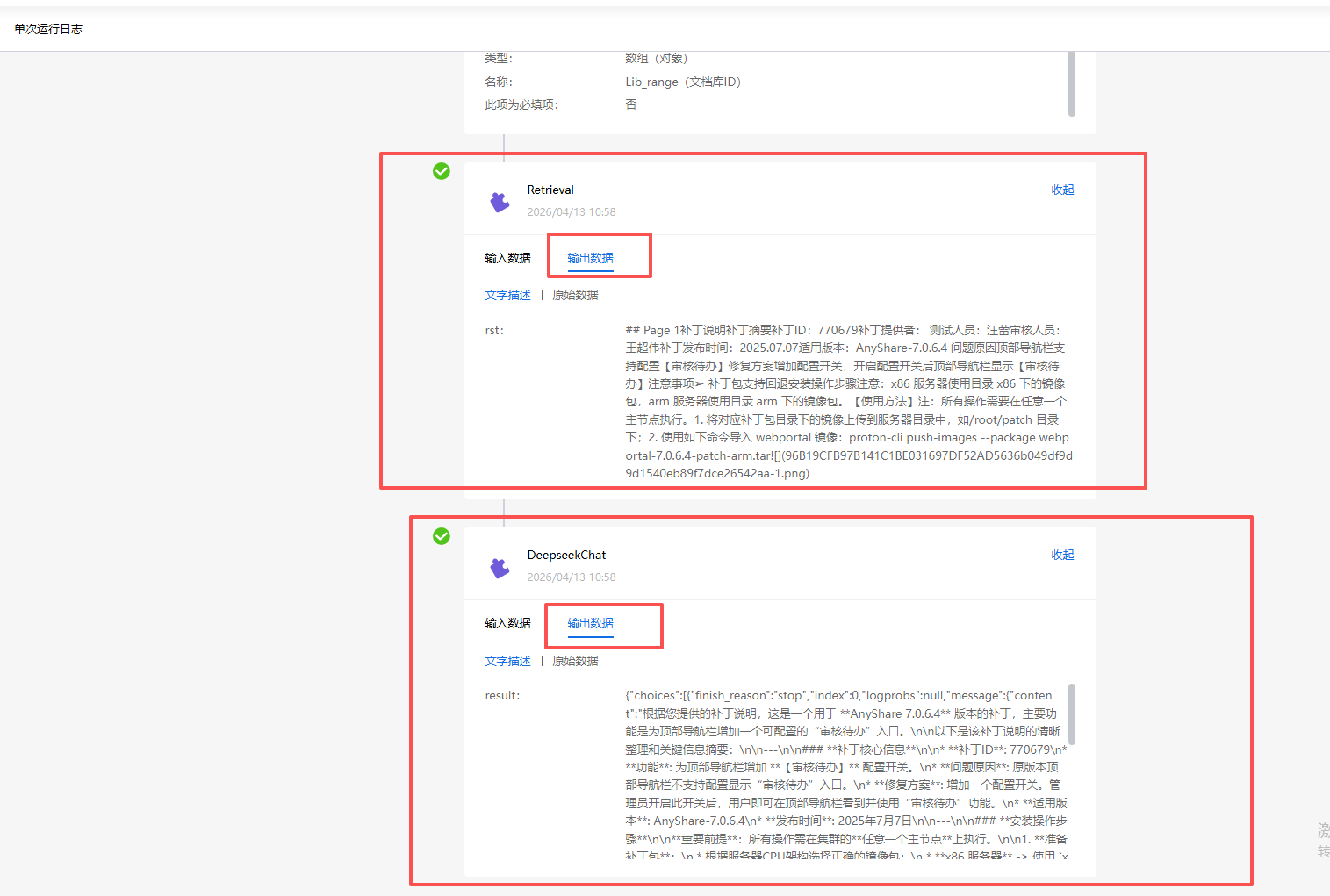

查看chatflow工作流任务运行结果
alt text

查看智能体对话输出(智能体的问答输出结果来源于智能体绑定的工作流的最后一个大模型节点的输出结果)
alt text

用户自定义节点实现大模型召回和编排能力

文档中示例的节点为当前内置的示例RAG节点,用户可根据自身需求,创建工作流自定义节点实现大模型的召回和编排能力,最后再和智能体相结合使用。

用户可以使用内置的召回节点,或者参考召回节点的代码,实现自己的召回操作。
用户可以通过添加python节点进行额外自定义步骤操作。但是chatflow暂时只支持最后一个节点按照OpenAI的LLM对话的方式进行返回,其他格式暂不支持,请务必按照此步骤操作,且chatflow暂不支持流式返回。

两个内置节点代码如下:

1.Retrieval召回节点

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
import requests
import json
import urllib3
from typing import List, Dict, Any
import logging

logging.basicConfig(level=logging.INFO)

requests.packages.urllib3.disable_warnings()
from aishu_anyshare_api import ApiClient
token = ApiClient.get_global_access_token()
host = ApiClient.get_global_host()

retrieval_url = "/api/intelli-search/v1/mf/retrieval"

DEFAULT_TOP_K = 10
DEFAULT_SCORE_THRESHOLD = 0.1
DEFAULT_TIMEOUT_TIMEOUT = 30000

def retrieval(query, source_ranges, history, lib_ranges, top_k=DEFAULT_TOP_K, score_threshold=DEFAULT_SCORE_THRESHOLD, timeout=DEFAULT_TIMEOUT_TIMEOUT):
if not query:
return []
params = build_recall_params(query, source_ranges, lib_ranges, top_k, score_threshold, timeout)
logging.info(f"召回参数: {params}")
if not params:
logging.error("召回参数为空")
return []
records = _retrieval(params)
logging.info(f"召回结果: {records}")
all_records = _deduplicate_and_sort(records)
logging.info(f"去重排序后结果: {all_records}")
return all_records

def build_recall_params(query, source_ranges, lib_ranges, top_k, score_threshold, timeout=DEFAULT_TIMEOUT_TIMEOUT):
doc_params = {"top_k": top_k, "score_threshold": score_threshold, "ids": [], "ranges": [], "search_method": "vector_search", "weight_filters": []}
wiki_params = {"top_k": top_k, "score_threshold": score_threshold, "ranges": [], "ids": [], "search_method": "hybrid_search", "weight_filters": []}
faq_params = {"top_k": top_k, "score_threshold": score_threshold, "ranges": [], "id": [], "search_method": "hybrid_search", "weight_filters": [], "item_output_detail": {"field": "content"}}

for source in source_ranges:
id = source.get("id")
if source.get("type") == "doc":
if id and id not in doc_params["ranges"]:
doc_params["ranges"].append(id)
elif source.get("type") == "wiki":
if id and id not in wiki_params["ids"]:
wiki_params["ids"].append(id)
elif source.get("type") == "faq":
if id and id not in faq_params["id"]:
faq_params["id"].append(id)

params = {"text": query, "doc": doc_params, "wiki": wiki_params, "faq": faq_params, "timeout": timeout}
return params

def _retrieval(params):
url = f"{host}{retrieval_url}"
try:
headers = {"Content-Type": "application/json", "Authorization": f"Bearer {token}"}
logging.info(f"请求URL: {url}")
response = requests.post(url=url, json=params, headers=headers, timeout=DEFAULT_TIMEOUT_TIMEOUT, verify=False)
logging.info(f"响应状态码: {response.status_code}, body={response.text}")
if response.ok:
try:
result = response.json()
return result.get("records", [])
except json.JSONDecodeError:
logging.error(f"JSON解析失败: {response.text}")
return []
else:
logging.error(f"请求失败: status={response.status_code}, body={response.text}")
return []
except requests.exceptions.RequestException:
import traceback; traceback.print_exc()
return []

def _deduplicate_and_sort(records):
seen = {}
for record in records:
record_id = record.get("id")
if record_id and record_id not in seen:
seen[record_id] = record
elif record_id:
existing = seen.get(record_id)
if existing and record.get("score", 0) > existing.get("score", 0):
seen[record_id] = record
unique_records = list(seen.values())
unique_records.sort(key=lambda x: x.get("score", 0), reverse=True)
return unique_records

def main(query, source_ranges, history, lib_ranges):
result = retrieval(query=query, source_ranges=source_ranges, history=history, lib_ranges=lib_ranges)
logging.info(f"召回结果: {result}")
rst = ""
for record in result:
rst += record.get("content", " ")
logging.info(f"合并后结果: {rst}")
return rst

2.Deepseekchat大模型输出节点

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
import requests

def chat_with_deepseek(
query: str,
history: list,
rst: str,
base_url: str,
apikey: str
):
"""
调用 DeepSeek API 进行对话(带参考资料)
:param query: 用户当前问题
:param history: 历史对话列表
:param rst: 参考资料内容(字符串)
:param base_url: API 地址,如 https://api.deepseek.com
:param apikey: API Key
:return: AI 回答内容
"""
# 拼接接口地址
url = f"{base_url.rstrip('/')}/chat/completions"

headers = {
"Authorization": f"Bearer {apikey}",
"Content-Type": "application/json"
}

# 复制历史消息
messages = history.copy()

# ============== 关键:拼接参考资料 + 用户问题 ==============
if rst and rst.strip():
# 有参考资料时,把资料放进prompt
prompt = f"参考资料:\n{rst}\n\n用户问题:{query}"
else:
# 无参考资料
prompt = query

messages.append({"role": "user", "content": prompt})

# 请求体
payload = {
"model": "deepseek-chat",
"messages": messages,
"temperature": 0.3, # 参考资料建议低温度
"max_tokens": 3000,
"stream": False
}

try:
resp = requests.post(url, json=payload, headers=headers, timeout=60)
resp.raise_for_status()
result = resp.json()
return result

except Exception as e:
return f"API调用失败:{str(e)}"


def main(query,history,rst,base_url,apikey):

# 调用函数
answer = chat_with_deepseek(query, history, rst, base_url, apikey)
return answer


if __name__ == "__main__":
rst = main("AnyShare 是什么?",[], "AnyShare 是内容管理系统", "https://api.deepseek.com/v1", "sk-28fcd933dfa24f0584b7b039c75b07b2")
print(rst)
